Low Pressure Vortex Gas Flow Meter LSU-99A-DA

The Low Pressure Gas Vortex Flow Meter LSU-99A-DA features stable metering, high accuracy, long service life, and easy maintenance. As a new-generation flowmeter specifically developed for clean water and wastewater flow measurement at oilfield water injection stations and wellheads, it can operate in locations without power supply and serves as a direct replacement for conventional water meters.

Get A Quote
Detail

Measurement Principle:

The LSU-99A Series Gas Vortex Flow Meter operates on the Kármán vortex street principle. It combines the characteristics of both vortex flowmeters and electromagnetic flowmeters, which belong to the category of velocity-type flow measurement instruments.

The operating principle is illustrated in Figure 1.

The bluff body is mounted within the measuring pipe. An insulated electrode rod is installed at a specified distance downstream of the generator, with a pair of permanent magnets vertically aligned between the generator and electrode.

When fluid flows past the bluff body at velocity V, alternating vortices are produced on both sides of the generator, forming a “vortex street” (Figure 2). These vortices intersect the magnetic flux lines perpendicularly, generating periodic induced potential pulses. Within defined Reynolds number ranges, the vortex shedding frequency f on a single side exhibits linear proportionality to the fluid velocity V, as defined by the following formula:

f=St·V/d

Where:

V: Fluid velocity on both sides of the generator (m/s).

d: Characteristic width of the bluff body’s flow-facing surface (m).

St: Strouhal number, a constant within specific Reynolds number ranges for a given bluff body geometry.



With fixed pipeline and generator geometry, the flow rate QV becomes directly proportional to frequency f. The weak frequency-dependent signals are amplified, shaped, and processed via microprocessor to generate display readings and standardized outputs (e.g., 4–20 mA).

Figure 1 Vortex Flowmeter Structure Schematic

Figure 2 bluff body Schematic

Gas Vortex Flow Meter Selection

Model Coding:



Technical Parameters

Overview:

The Low Pressure Gas Vortex Flow Meter LSU-99A-DA features stable metering, high accuracy, long service life, and easy maintenance. As a new-generation flowmeter specifically developed for clean water and wastewater flow measurement at oilfield water injection stations and wellheads, it can operate in locations without power supply and serves as a direct replacement for conventional water meters.

Features:

1.Electrodes and piezoelectric crystal probes offer low resistance to liquids, reliable performance, and a long service life.

2.The flow meter core is detachable, facilitating convenient calibration and maintenance of the instrument.

3.Outputs pulse signals proportional to flow rate with no zero drift.

4.Features integrated temperature and pressure compensation.

5.Low pressure loss, suitable for metering sandy sewage and clean water.

6.The LCD displays instantaneous flow, cumulative flow, and allows daily water injection volume to be queried.

Specification:

Nominal Diameter

DN15~DN300

Nominal Pressure

1.0MPa~4.0MPa

Ingress Protection

IP65

Suitable Media

Water, Wastewater, Gas

Turndown Ratio

1:10, 1:15, 1:20

Accuracy

±0.75%, ±1.0%, ±1.5%

Medium Temperature

Liquid 0~70℃, 0~150℃;Gas 150℃~350℃

Ex-protected design

Ex d ⅡC T4 Gb, Ex ia ⅡC T4

Output Signal

Pulse/Frequency 5kHz, 4~20mA, 4~20mA+HART, RS485, MODBUS

Electrical Interface

M20×1.5 Internal Thread (M18×1.5 Internal Thread, 1/2NPT Internal Thread, are customizable)

Power Supply

AC220V, DC24V, DC3.6V (3+ years life, local display only, no output)

Ambient Temperature

-40℃~80℃ (requires protective measures below this threshold)

Ambient Humidity

5%~95%

Note: The instrument flanges comply with GB/T 9115-2010. For special requirements, the applicable standard must be specified (ASME B16.5-2009 Pipe Flanges and Flanged Fittings or the Ministry of Chemical Industry standard HG/T 20615-2009 Steel Pipe Flanges (Class Series)).

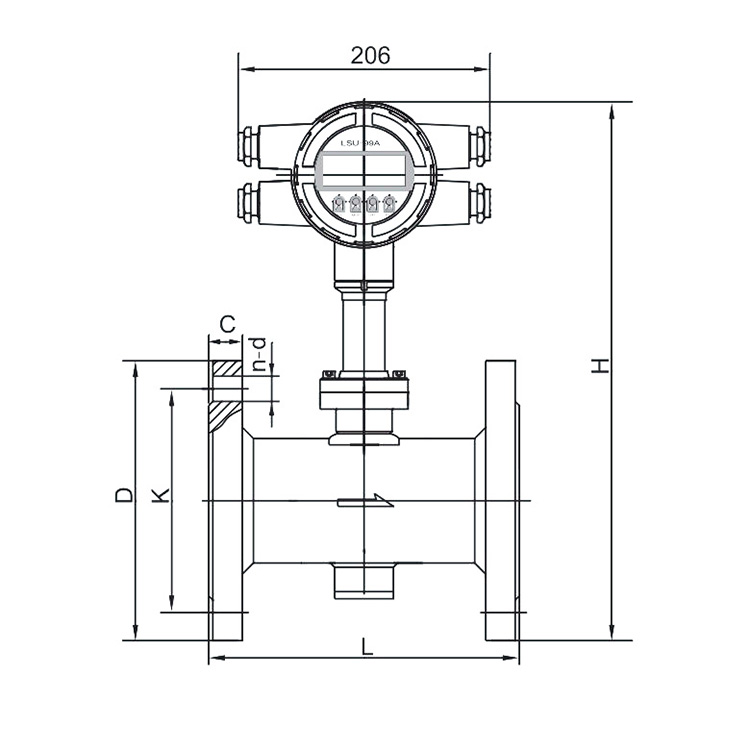

Installation Size:



Nominal Diameter

Nominal Pressure (MPa)

Normal flow range

Low flow range

L

H

D

K

n-d

C

DN25

4.0

0.7~7m³/h

0.4~4m³/h

150

320

115

85

4-Φ14

16

DN32

4.0

1.2~12m³/h

0.6~12m³/h

200

340

140

100

4-Φ18

18

DN40

4.0

1.8~18m³/h

0.7~14m³/h

200

350

150

110

4-Φ18

18

DN50

4.0

2.8~28m³/h

0.8~16m³/h

200

360

165

125

4-Φ18

20

DN65

4.0

4.8~48m³/h

2.8~56m³/h

200

373

185

145

8-Φ18

22

DN80

1.6

9.0~90m³/h

4.8~48m³/h

220

390

200

160

8-Φ18

20

4.0

24

DN100

1.6

14~140m³/h

9~90m³/h

250

400

220

180

8-Φ18

22

4.0

410

235

190

8-Φ22

26

DN150

1.6

32~320m³/h

14~140m³/h

300

473

285

240

8-Φ22

24

320

480

300

250

8-Φ26

30

DN200

1.0

56~560m³/h

32~320m³/h

320

525

340

295

8-Φ22

24

1.6

12-Φ22

26

2.5

350

535

360

310

12-Φ26

32

4.0

542

375

320

12-Φ30

36

DN250

1.0

88~700m³/h

56~560m³/h

400

560

395

350

12-Φ22

26

1.6

565

405

355

12-Φ26

28

2.5

575

425

370

12-Φ30

35

4.0

588

450

380

12-Φ33

42

DN300

1.0

128~1000m³/h

88~700m³/h

450

602

445

400

12-Φ22

28

1.6

610

460

410

12-Φ26

32

2.5

622

485

430

16-Φ30

38

4.0

637

515

450

16-Φ33

48
